Brandon Fayette has taken the time to create these 3D models of DeLorean parts that are hard to find, or are no longer available.
To view the the 3D models, download the .obj file, and go to 3DViewer.net or Creators3D.com
Click here for Brandon’s DropBox folder.
| Model Name | Title, Image, Notes |
|---|---|
| DeLorean Ashtray Walkman NWA105 Holder | Cradle - 2 Ashtray slug that can be customized into any type of holder, in this case one for a Walkman NWA105 |
| DeLorean Ashtray Walkman NWA105 Holder | Cradle - 1 Ashtray slug that can be customized into any type of holder, in this case one for a Walkman NWA105 |
| DeLorean Ashtray Walkman NWA105 Holder | Cradle - 3 Ashtray slug that can be customized into any type of holder, in this case one for a Walkman NWA105 |
| DeLorean Ashtray Walkman NWA105 Holder | DelAshtray_Walkman_base.obj Scale this by .975 before printing |
| DeLorean Ashtray Walkman NWA105 Holder | DelAshtray_Walkman_plate.obj Scale this by .975 before printing |
| DeLorean Dashboard Extension | DashPhone_v6_dashboardExtensionPiece.obj Designed in the same fashion as the Binnacle, this extension can be held on (as in this case) by a large silicon anti slip mat or clips can be fabricated to snap it between the center console and the dash. I have been using the silicon mat for about a year now and have never had it move. This is the slug, so you'll need to get it upholstered to match. |
| DeLorean Dashboard Extension | Extension - 1 |
| DeLorean Dashboard Extension | Extension - 2 |
| DeLorean Center Console Cap | Center Cap You will need to adjust this to your dimensions but this is for anyone who needs a cover (from UV damage) or a harder surface point on the top of the center console. It was requested by an owner. |
| DeLorean Dual Switch | Dual Switch - installed Dual Window switch! Ryan Foster had the idea to come up with a dual rocker switch that fits into the same socket as the originals and matches the aesthetic of the original switches. This is just the plastic parts (switch caps and socket). You'll need to source electronics on your own. This also contains a recreation of the switch socket should you want to make your own attachments that fit into the console. |
| DeLorean Dual Switch | Console preview |
| DeLorean Dual Switch | Switch |
| DeLorean Dual Switch | Switch, exploded Exploded view of the parts. |
| DeLorean Dual Switch | Click here for video This video shows the action of the switch. |
| DeLorean Dual Switch | Del_CapA.obj 3d file to print |

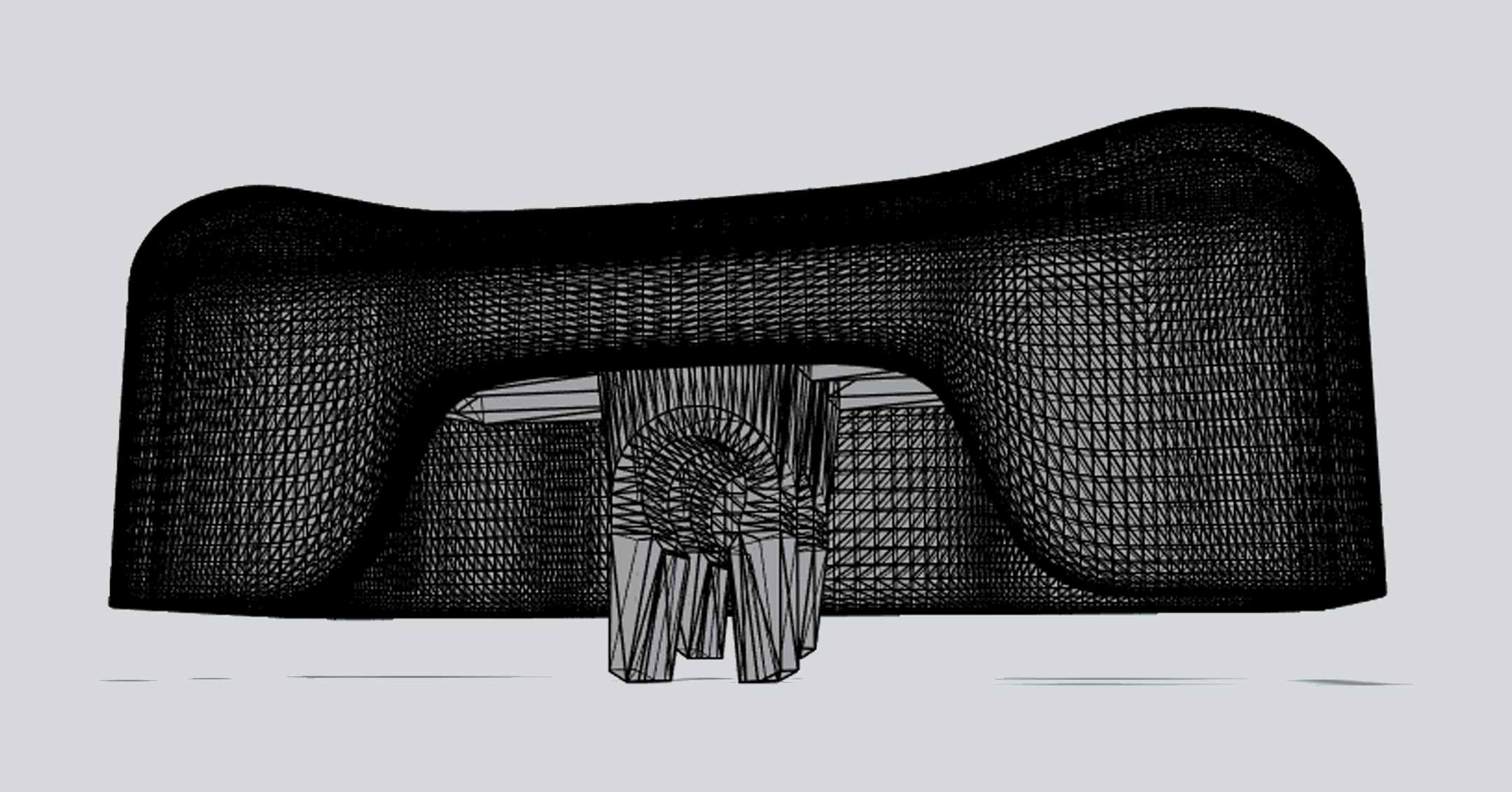

| DeLorean Dual Switch | Del_CapB.obj 3d file to print |
| DeLorean Dual Switch | Del_SideA.obj 3d file to print |
| DeLorean Dual Switch | Del_SideB.obj 3d file to print |
| DeLorean Extended Mode Switch | Mode Switches, installed |
| DeLorean Extended Mode Switch | Mode Switch model |
| DeLorean Extended Mode Switch | Mode Switch, open |
| DeLorean Extended Mode Switch | DeloreanMode_Switch_Ext_Open_v001.obj A longer HVAC Mode switch (open hole version) |
| DeLorean Extended Mode Switch | DeloreanMode_Switch_Ext_v001.obj A longer HVAC Mode switch (Closed) |
| DeLorean HVAC Panel | HVAC Panel, McKeen A recreation of the HVAC panel that is no longer available as well as for David's LED Panel |
| DeLorean HVAC Panel | DeloreanHVAC_McK_v001.obj |
| DeLorean HVAC Panel | DeloreanHVAC_McK_v002.obj |
| DeLorean Key Fob | Click here for video |
| DeLorean Key Fob | DelKey_Back_v3.obj |
| DeLorean Key Fob | DelKey_Shell_A_v3.obj |
| DeLorean Key Fob | DelKey_Shell_B_v3.obj |
| DeLorean Louvre Mounting Bracket Cover | Louvre Mounting Bracket Cover, installed |
| DeLorean Louvre Mounting Bracket Cover | Delorean_LouvreMtgBKRT_Cover_v008.obj A recreation of the original Part |
| DeLorean Rheostat Switch - Open | Rheostat Switch - Open, installed |
| DeLorean Rheostat Switch - Open | Delorean_Rheostat_Switch_Open_v008.obj |
| DeLorean Snap Steering Bushing | DelSnapBushingSolid_v004.obj Widest diameter should be 32mm |
| DeLorean Snap Steering Bushing | DelSnapBushingBrace_Notched_v4.obj Widest diameter should be 32mm |
| DeLorean Snap Steering Bushing | DelSnapBushingHalf_v4.obj Widest diameter should be 32mm |
| DeLorean Snap Steering Bushing | DelSnapBushingBrace_Flat_v4.obj Widest diameter should be 32mm |
| DeLorean Windshield Wiper Tube Clip | DeLorean Windshield Wiper Tube Clip, installed This shows the installation location. |
| DeLorean Windshield Wiper Tube Clip | Delorean_WSWA_Support_v2.obj Recreated no longer made Windshield Wiper Support Clip |
| DeLorean Lighted Key Re-Design | Top and bottom of finished key Re-creation of the Original Delorean Lighted Key Using modern components (Supposedly only on early cars) |
| DeLorean Lighted Key Re-Design | Key Assembly model animation Re-creation of the Original Delorean Lighted Key Using modern components (Supposedly only on early cars) |
| DeLorean Lighted Key Re-Design | Key light test Re-creation of the Original Delorean Lighted Key Using modern components (Supposedly only on early cars) |
| DeLorean Lighted Key Re-Design | Reference photos Re-creation of the Original Delorean Lighted Key Using modern components (Supposedly only on early cars) |
| DeLorean Lighted Key Re-Design | Del_LIghtedKey_batteryCap_v10.obj Re-creation of the Original Delorean Lighted Key Using modern components (Supposedly only on early cars) |
| DeLorean Lighted Key Re-Design | Del_LIghtedKey_bot_v10.obj Re-creation of the Original Delorean Lighted Key Using modern components (Supposedly only on early cars) |
| DeLorean Lighted Key Re-Design | Del_LIghtedKey_button_v10.obj Re-creation of the Original Delorean Lighted Key Using modern components (Supposedly only on early cars) |
| DeLorean Lighted Key Re-Design | Del_LIghtedKey_top_v10.obj Re-creation of the Original Delorean Lighted Key Using modern components (Supposedly only on early cars) |

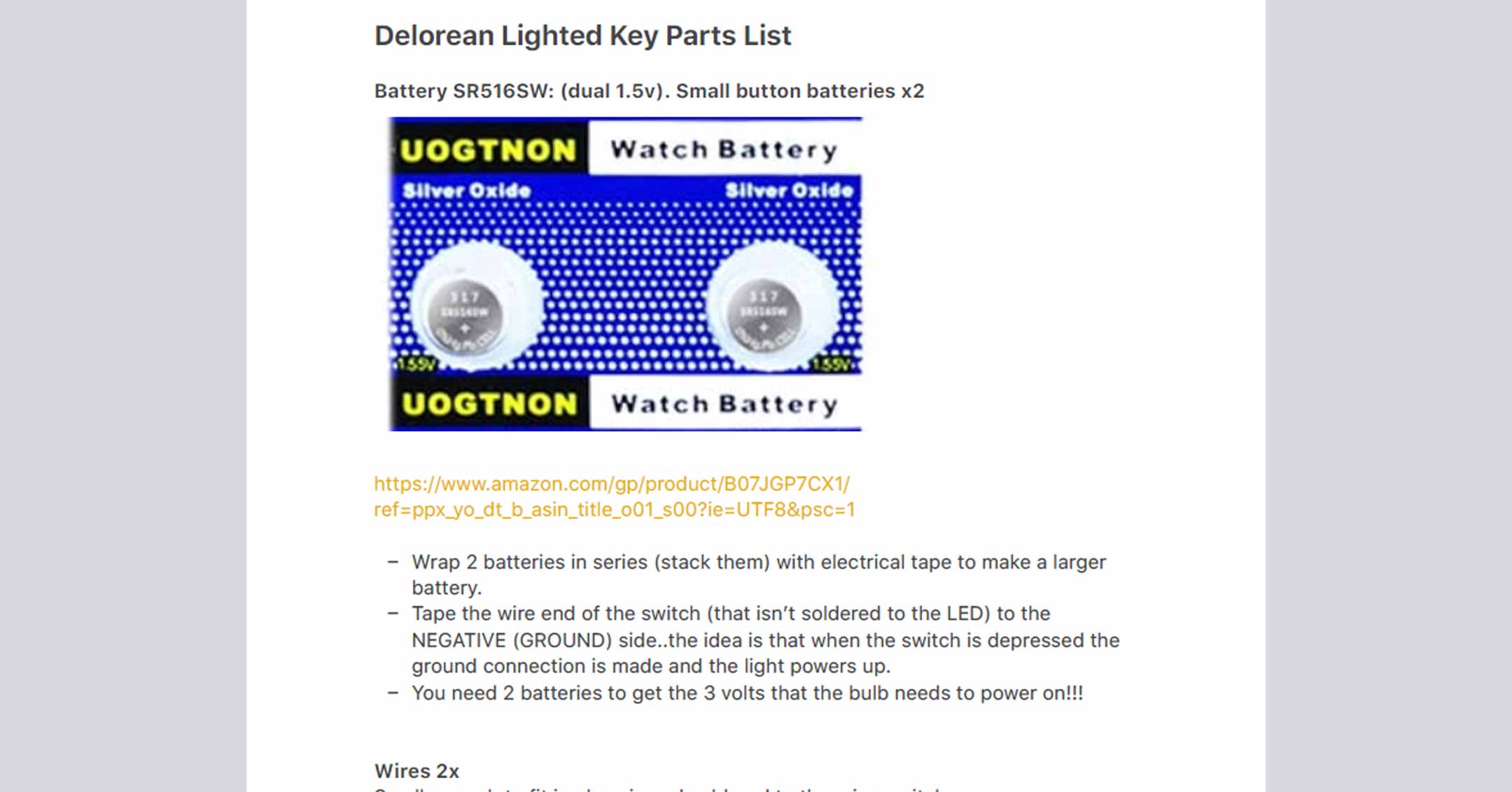

| DeLorean Lighted Key Re-Design | DeLorean Lighted Key Parts List .pdf Re-creation of the Original Delorean Lighted Key Using modern components (Supposedly only on early cars) |
